A Comprehensive Guide to Practical Knowledge of Electric Tropical Tracing

Electric heat tracing tape is widely used for anti freezing and insulation of various pipelines and tanks. Improper selection, construction, and operation and maintenance can easily cause abnormal heating, electrical leakage, aging, and other operational issues. This article summarizes a complete set of practical professional knowledge, providing comprehensive guidance for engineering applications and daily operations, effectively avoiding various equipment hazards.

Basic classification and applicable scenarios are the core prerequisites for selection. Electric heat tracing belts are mainly divided into three categories, suitable for different working conditions. Low temperature self limiting heat tracing tape has high cost-effectiveness, can automatically adjust temperature, supports arbitrary cutting and slight overlapping laying, and is mainly used in conventional antifreeze scenarios such as civil water supply and drainage, fire pipes, and greenhouse farming. Medium temperature self limiting heat tracing tape has stronger temperature resistance and is suitable for insulation of ordinary chemical process pipelines and ambient temperature storage tanks. The constant power heating strip includes two types: series and parallel, with stable heating and no power attenuation. It is suitable for long-distance transmission pipelines and high-precision constant temperature industrial scenarios, and must be used with a temperature controller. In addition, MI armored heat tracing tape is resistant to high temperature, explosion and pressure, and is commonly used in high-risk explosion-proof, ultra-high temperature, and extremely cold special working conditions.

The core criteria for scientific selection can avoid adaptability errors. Conventional civilian antifreeze prioritizes 65 ℃ low-temperature type to meet daily pipeline antifreeze needs; Under the condition of constant temperature process with medium, the medium high temperature models of 105 ℃ and 135 ℃ are selected according to the medium temperature. Double layer waterproof sheath products must be selected for outdoor, high humidity, and well environments; Chemical, oil and gas, and dust explosion-proof areas are required to use shielded explosion-proof heat tracing belts; Suitable for acid and alkali corrosion scenarios, fluoroplastic anti-corrosion sheathed cables. Power margin should be reserved in extremely cold and high-altitude areas to prevent temperature loss and freezing caused by strong winds and low temperatures.

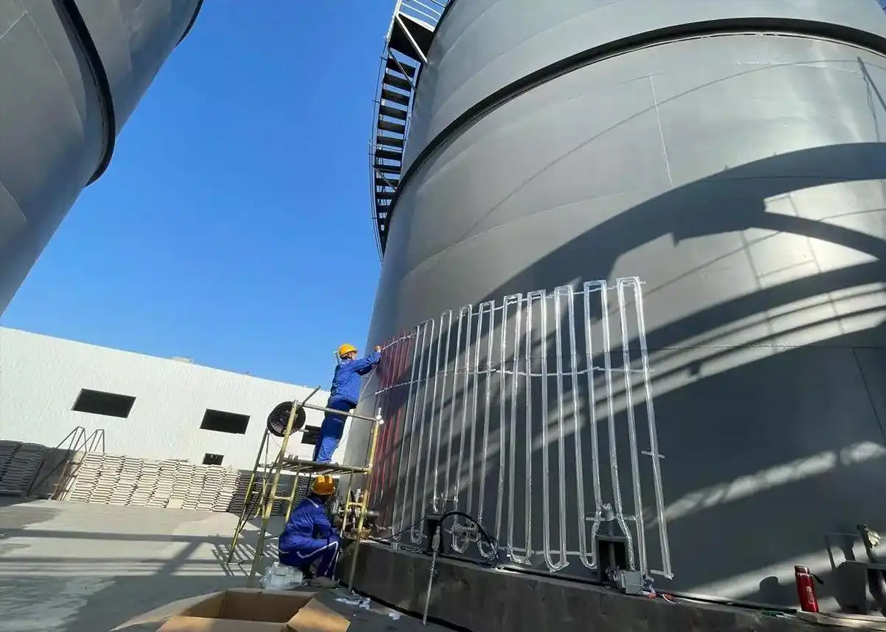

Standardized construction standards ensure the stable operation of the system. Before laying, it is necessary to clean the burrs and rust on the surface of the pipeline to avoid sharp points from scratching the insulation layer of the cable. The cables are laid neatly against the pipe wall, and the points with fast heat dissipation such as valves, elbows, flanges, etc. are appropriately encrypted and laid to prevent freezing dead corners. Self limiting temperature cables should avoid large-scale stacking as much as possible, and constant power cables are strictly prohibited from crossing and overlapping to prevent local heat accumulation and overheating. All wiring points are equipped with dedicated waterproof and explosion-proof junction boxes, filled with sealant to isolate water vapor. After construction is completed, insulation resistance testing must be carried out, and only after passing the test can the insulation layer be covered.

The key points of using a temperature control system directly determine energy consumption and antifreeze effect. The conventional setting for civil antifreeze is to start at 3-5 ℃ and stop at 10-15 ℃, balancing antifreeze and energy conservation; Industrial process pipelines are precisely set with a constant temperature range as needed. The temperature control probe should be closely attached to the low-temperature point of the pipeline, and suspended temperature measurement is prohibited to avoid data deviation and start stop confusion. It is recommended to separately control the temperature of long-distance pipelines in sections to prevent local temperature loss. Explosion proof working conditions should be equipped with explosion-proof temperature control boxes to ensure electrical safety.

Common abnormal faults and basic handling methods need to be proficiently mastered. Insufficient heating and pipeline freezing are often caused by insulation damage, probe displacement, and cable power attenuation. It is necessary to repair insulation, calibrate probes, and replace aging cables in a timely manner. Line tripping and leakage are often caused by damaged sheaths and damp joints. It is necessary to cut off the power and test the insulation, reseal and replace the damaged lines. Local overheating and cable overheating are often caused by overlapping wiring and heat accumulation, and it is necessary to reorganize the circuit and eliminate the accumulation points. Special inspections are required after adverse weather conditions to promptly address issues such as moisture damage to the circuit and external protection.

Daily operation and lifespan management extend the service life of equipment. Daily inspections focus on checking the status of cable sheaths, insulation layers, and wiring points, and promptly addressing potential risks of cracking, detachment, and water leakage. Insulation retesting and temperature control calibration shall be carried out before seasonal operation every year to identify hidden faults. Eliminate illegal operations such as live maintenance, dragging cables with hard objects, and unauthorized changes to line length. Old cables with power attenuation and insulation that do not meet standards should be replaced as a whole in a timely manner.

Having a comprehensive understanding of the selection, construction, temperature control, troubleshooting, and operation of electric heat tracing belts can help avoid the vast majority of operational hazards from the source. Standardizing the implementation of various operational standards can ensure the safe, energy-saving, and long-term stable operation of the heat tracing system, meeting the anti freezing and insulation needs of various scenarios.
