Detailed explanation of the function of the metal shielding layer in electric heat tracing bands

Many procurement and construction personnel tend to overlook the metal shielding layer of electric heat tracing bands, thinking of it merely as an auxiliary outer structure. In reality, heat tracing bands with a shielding layer have a safety level far higher than ordinary single-sheathed cables. The absence of shielding protection can also lead to various operational hazards, making it an indispensable and important structure in industrial heat tracing systems.

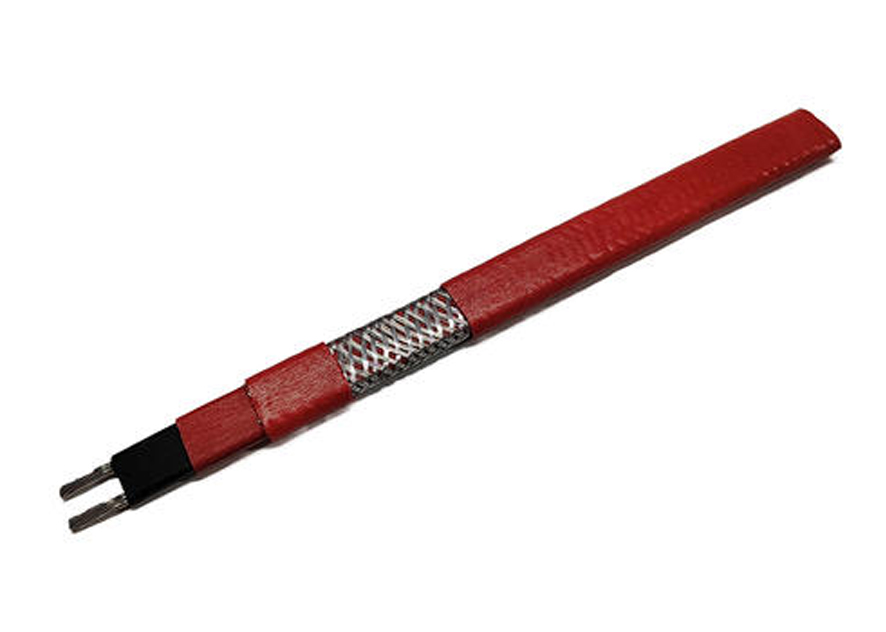

The metal shielding layer of electric heat tracing bands is generally composed of woven copper mesh or aluminum alloy material, wrapped between the insulation layer and the outer sheath. It is commonly seen in explosion-proof, corrosion-resistant, and industrial-specific heat tracing bands. Most civilian ordinary antifreeze cables do not have this structure, which is also one of the most intuitive differences between industrial and civilian models.

Electrostatic discharge and grounding protection are the most fundamental functions of the shielding layer. When the heat tracing belt is continuously powered on for long-term operation, the internal heating core wire will generate a small amount of induced static electricity, and in some humid working conditions, there may also be a weak leakage current. After connecting the metal shielding layer with a grounding wire, it can quickly discharge stray currents and static electricity, preventing charges from accumulating on the surface of the cable and avoiding electrostatic sparking at the source.

Due to this characteristic, the use of tracing cables with shielding layers is mandatory in high-risk explosion-proof areas. In flammable and explosive factory areas, even the slightest electrostatic spark can potentially trigger a safety accident. The shielding layer forms a safety barrier, effectively enhancing the adaptability of cables in special locations such as chemical industries and oil and gas storage.

Secondly, it can enhance the physical protection capability of cables. During outdoor construction and pipeline laying, heat tracing cables are prone to external pressure, scratching by sharp objects, and frequent friction. The dense metal braiding layer can buffer external impact forces, share the wear and tear from the outside, protect the internal insulation layer and heating core wire, and reduce the probability of damage during construction and operation and maintenance stages.

The shielding layer can also mitigate electromagnetic interference issues. When cables are energized and generate heat, they emit low-frequency electromagnetic fields, which can not only interfere with the data accuracy of surrounding precision temperature measurement instruments and sensors, but also cause mutual interference when multiple cables are laid together. The metal shielding structure can isolate internal and external electromagnetic radiation, stabilize the operating state of surrounding electrical equipment, and is suitable for precision production scenarios such as pharmaceuticals and fine chemicals.

In addition, this structure can also delay cable aging. Facing ultraviolet exposure, humid salt spray, and mild corrosive gases, the metal shielding layer can indirectly isolate the inner sheath from the harsh environment, reducing issues such as sheath whitening, hardening, and cracking. Under the same working conditions, the overall service life of the heat tracing belt with a shielding layer is significantly longer than that of the ordinary style.

It should be noted that the metal shielding layer can only fully function when it is properly grounded. Many projects only use shielded cables but omit the grounding process, which only provides physical protection and completely loses its explosion-proof, anti-static, and anti-interference functions. During construction, one or both ends must be reliably grounded to fully unlock the full value of the shielding layer.
