MI electric heat tracing cable installation specifications and precautions

MI mineral insulated electric heat tracing bands are high-end industrial heat tracing products, featuring excellent high-temperature resistance, explosion-proofing, and pressure resistance. They are widely used in various high-temperature, high-risk, and corrosive extreme conditions. Due to their special product structure and high construction precision requirements, non-standard installation can easily cause insulation damage, abnormal operation, and other hidden problems, affecting the normal use of the heat tracing system.

The preparatory work for construction cannot be overlooked. Before commencing construction, it is necessary to verify the on-site working conditions, medium parameters, and explosion-proof grade, and confirm that the cable model and power are matched and comply with regulations. Inspect the appearance of the cables to ensure they are free from crushing, cracks, and damage, and retest the insulation resistance to ensure that the parameters meet the standards. Clean the welding slag, burrs, and oil stains from the pipe wall to prevent scratching the metal sheath at sharp locations.

Cable laying must adhere to specific specifications. The MI tracing band is rigid and has low malleability. Violent bending is strictly prohibited during installation, and it must meet the minimum bending radius requirements. Excessive bending can easily cause internal insulation cracking, core wire displacement, and latent faults. The laying and routing of cables should be kept straight and neat, with appropriate tension, and must avoid twisting, squeezing, overlapping, and crossing.

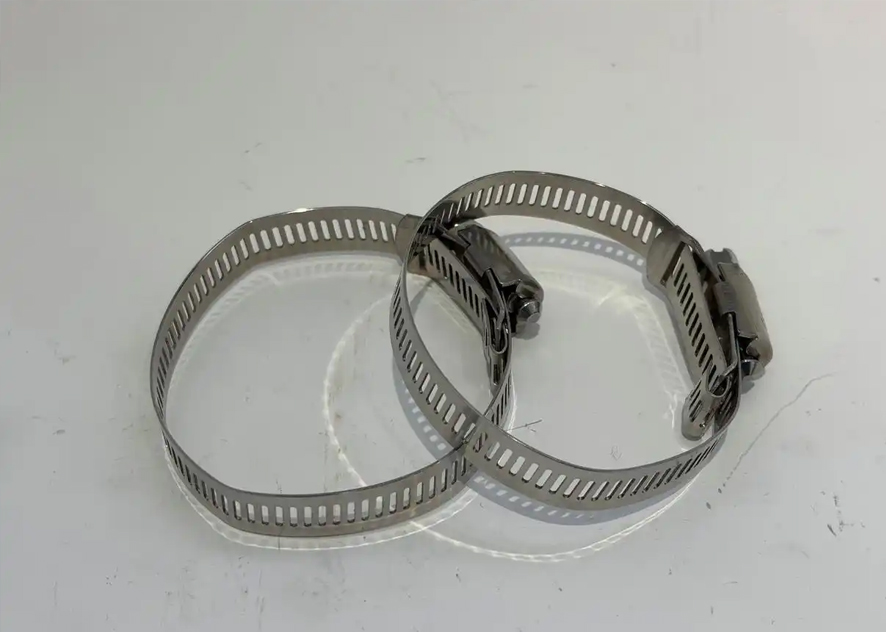

The fixing method differs from ordinary tracing cables. Plastic clips are prohibited and stainless steel clamps or metal ties must be used for fixation. The spacing should be uniform and neat, ensuring that the cables are tightly fitted to the pipe wall without any hanging or looseness. A good fitting state can ensure uniform heat conduction, avoiding issues such as local heat accumulation and poor heat transfer.

At heat dissipation points such as pipe bends, valves, and tees, cables can be laid more densely. Leveraging the high-temperature resistance advantage of MI heating cables, local heat loss can be compensated for, eliminating blind spots in antifreeze and temperature maintenance, and achieving a more balanced temperature along the entire pipeline.

Terminal processing and wiring are crucial steps in construction. The insulation layer of MI cables is highly susceptible to moisture and resistance reduction, so the stripping, cleaning, and sealing of terminals must be carried out in a dry environment. Specialized connectors should be used, with a compact sealing structure, to ensure waterproof and moisture-proof measures are taken to prevent moisture from infiltrating the core, which could lead to faults such as electric leakage and insulation degradation.

Explosion-proof conditions must be matched with explosion-proof accessories of the same level to ensure that the wiring cavity is sealed tightly, preventing dust and moisture from entering. After wiring is completed, it is essential to retest the insulation resistance. Only when the value meets the standard can subsequent construction be carried out.

The installation of temperature control probes must be standardized and precise, fitting snugly against the low-temperature side of the pipeline and avoiding the heating belt itself, to ensure accurate temperature measurement data and prevent abnormal temperature control start-stop operations. Based on on-site anti-freezing or process temperature maintenance requirements, the temperature control range should be reasonably set to avoid overheating of equipment and effectively extend its service life.

The construction of the external insulation protection should be carried out after the power-on test is qualified. The insulation layer should be spliced tightly without any voids or missing coverage, and the outer waterproof protective board should be sealed properly to prevent rainwater from infiltrating and soaking the pipeline. After all construction is completed, a power-on test run should be conducted to check the heating effect and circuit current. If there are no abnormalities, it can be put into regular use.

The installation requirements for MI electric heat tracing bands are more stringent than those for ordinary products. Details such as laying and bending, fixing methods, end sealing, and insulation testing directly determine the operating status of the equipment. Standardizing construction and controlling various process standards can effectively avoid various construction hazards and ensure long-term safe and stable operation of the industrial heat tracing system.
