Precautions for using solar pipeline electric heat tracing belt

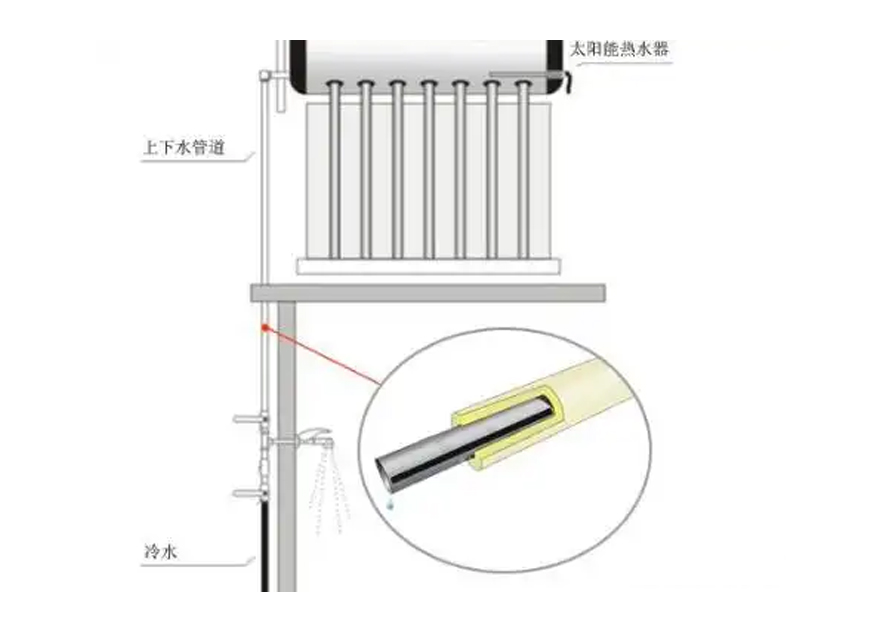

Solar energy pipelines are prone to freezing and blockage or cracking due to low temperatures in winter, affecting hot water supply. Electric heat tracing bands are key equipment to solve this problem. Proper use of electric heat tracing bands for solar energy pipelines can not only ensure the anti-freezing effect of the pipeline but also extend the service life of the equipment and avoid potential safety hazards. It is an important guarantee for the stable operation of the solar energy system in winter.

When using solar pipeline electric tracing bands, the first priority is to scientifically select the type that is suitable for the operating conditions of the solar pipeline. Self-regulating electric tracing bands are preferred, as they can automatically adjust their power according to the ambient temperature, generate heat efficiently at low temperatures, and maintain heat at high temperatures, thus avoiding excessive heat loss and preventing burns to the pipeline. Outdoor solar pipelines should use products with a waterproof rating of IP67 or higher to resist rain, snow, and moisture intrusion, and prevent short circuits and electric leakage. When the pipeline diameter is large, select a tracing band with a suitable power to ensure anti-freezing effects and avoid freeze-blocking caused by insufficient power.

Standardized operation is required during the installation process to eliminate potential hazards due to violations. The tracing band should be closely attached to the outer wall of the solar pipeline in parallel, secured with special pressure-sensitive adhesive tape or stainless steel cable ties. The fixed spacing for straight sections should not exceed 300mm. At elbows, joints, valves, and other parts prone to heat dissipation, the tracing band should be densely laid to ensure there are no anti-freezing blind spots. During installation, avoid overlapping and squeezing of the tracing band to prevent local overheating and damage to the sheath. At the same time, keep it away from the seals of pipeline joints to avoid high temperatures affecting the sealing effect.

Wiring and sealing are key safety concerns that require rigorous handling. Wiring must be carried out by professionals, and live wiring is strictly prohibited. Waterproof and sealed junction boxes must be used at the wiring points, filled with sealing glue to ensure no gaps and prevent rain, snow, and moisture from infiltrating and causing electrical failures. The ends of the heating cable must be properly sealed to prevent water ingress, avoid core corrosion and short circuits, and extend its service life.

During use, daily monitoring and control are necessary to promptly identify potential hazards. Before starting the solar energy system in winter, inspect the tracing band sheath for any damage, aging, or looseness, and repair or replace it if necessary. After powering on, check whether the tracing band heats up evenly to avoid frozen and blocked pipes due to uneven heating. After rainy or snowy weather, promptly clean the snow and debris from the pipes and the surface of the tracing band to prevent blockage and impact on the tracing effect.

Be careful to avoid misunderstandings and protect equipment safety. It is strictly prohibited to wrap the heat tracing belt inside the insulation layer of the solar pipeline. The heat tracing belt should be fixed first, and then the insulation layer should be wrapped to reduce heat loss. Avoid frequent starting and stopping of the heat tracing system. When it is not in use for a long time, the power should be cut off to prevent damage to the equipment due to no-load operation. Do not cut the heat tracing belt at will (except for self-limiting temperature), to avoid damaging the internal structure and causing heat tracing failure.

Routine maintenance should be normalized to extend the service life. Regularly inspect the sealing condition of junction boxes and ends, and promptly replace aged sealing glue. Before winter each year, comprehensively test the insulation performance of the heat tracing system to identify potential electrical leakage hazards. Regularly clean the pipeline scale to avoid abnormal heat dissipation from the pipeline and increase the load on the heat tracing belt.

The correct use of solar pipeline electric tracing bands is crucial for ensuring normal water supply in solar energy systems during winter. Following the precautions for selection, installation, use, and maintenance can not only effectively prevent pipeline freeze-ups and blockages but also enhance equipment safety and service life, allowing the solar energy system to function stably.
