The impact of aging electric heat tracing bands on safe operation

Electric heat tracing bands are long-term continuous operating equipment that are subjected to alternating high and low temperatures, wind and sun exposure, and load start-stop throughout the year, and will naturally age over time. Many projects only focus on initial installation and ignore later aging inspections, which can easily lead to various hidden dangers and pose safety hazards to the entire pipeline heat tracing system.

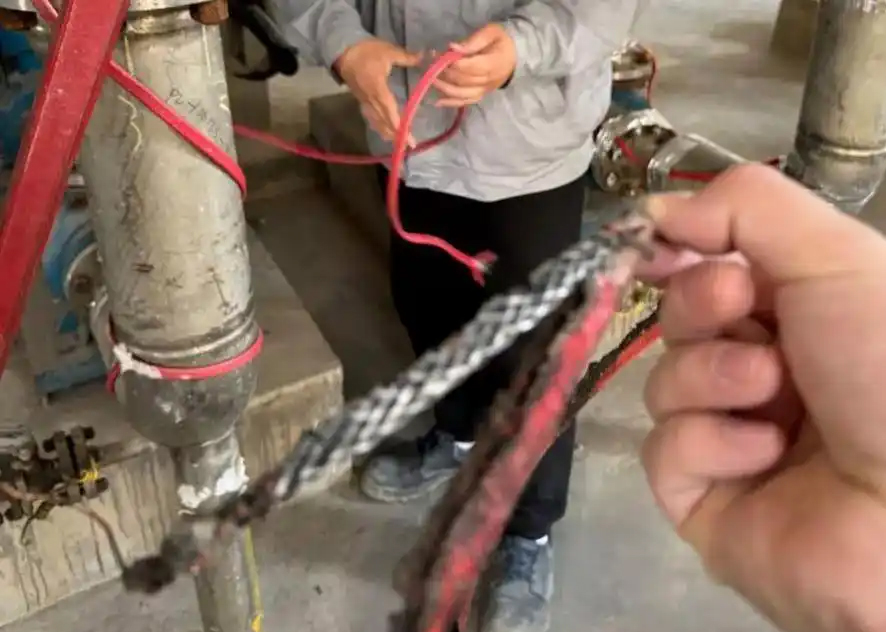

The aging of the outer sheath is the most intuitive manifestation and also the starting point of all safety issues. The original intact sheath can isolate water vapor, dust, and external friction. After long-term operation, it may exhibit phenomena such as hardening, embrittlement, cracking, and peeling. In outdoor working conditions, with strong ultraviolet radiation and large temperature differences between day and night, the aging rate will significantly accelerate. Once the outer skin cracks, the internal core wire and insulation layer are directly exposed to the air, making them extremely susceptible to moisture and damage.

The decline in insulation performance is the core hazard brought about by aging. With long-term thermal cycling in heat tracing operations, the internal insulation material will gradually carbonize and degrade, leading to a continuous decrease in insulation resistance values. During daily operation, situations such as minor electrical leakage, unexplained tripping, and frequent protective power cuts may occur. If not promptly investigated and replaced, insulation defects will continue to worsen, and in humid weather, it is extremely easy to cause short circuits, sparking, and in severe cases, line burnout.

After aging, the heating performance of the heat tracing belt will significantly decline, affecting the normal anti-freezing and temperature maintenance effects. After aging, the self-regulating PTC cable material exhibits insufficient low-temperature starting power, slower temperature rise, and cannot achieve the designed heating output under the same operating conditions. Although the pipeline appears to be powered normally, the actual heat dissipation exceeds the heat compensation, resulting in issues such as pipe freezing, crystallization, and material blockage during cold weather, directly affecting the stability of production and operation.

The stability of the circuit deteriorates, leading to a significant increase in the probability of failure. The internal conductors of aging cables undergo oxidation and poor contact, resulting in large current fluctuations during operation, which can easily lead to localized overheating and heating due to virtual connections. Some old lines exhibit hardening and deformation, and may break or short circuit with slight vibration or external force touch, leading to frequent sudden failures. This makes it difficult for operation and maintenance personnel to predict in advance, increasing the pressure on on-site inspections.

The aging hazards in explosion-proof areas are even more dangerous. Chemical, oil, and gas plant areas have extremely high requirements for equipment sealing and insulation, and aging and cracking heat tracing belts cannot meet explosion-proof standards. In the event of electric leakage sparking, encountering flammable and explosive media on site can lead to major safety accidents. This is also why it is necessary to replace old heat tracing equipment on schedule in high-risk working conditions.

Many on-site safety accidents are not caused by sudden equipment malfunctions, but rather by long-term accumulation of aging and operation with defects. Regular testing of insulation resistance, inspection of the integrity of the outer skin, and investigation of wiring aging, as well as timely replacement of cables that have exceeded their service life, can prevent most safety hazards from occurring in the first place.

The aging of electric heat tracing bands is an irreversible process, and minor losses accumulated over time can evolve into significant safety risks. Paying attention to equipment aging detection and periodic replacement, as well as standardizing daily inspection and maintenance, can not only ensure the anti-freezing effect of pipelines and process temperature maintenance, but also maximize on-site electrical safety, allowing the heat tracing system to operate stably and reliably for a long time.
