The widespread application of electric heat tracing bands in air conditioning

In the vast network of air conditioning systems, electric heat tracing bands, with their unique technical advantages, have established a warm defense line that ensures winter operation and enhances comfort experience, from outdoor equipment antifreeze to indoor auxiliary heating, from split units to central air conditioning. Their widespread application is quietly changing the performance of air conditioning in severe cold seasons.

The drainage and anti-freezing of outdoor units is the most basic and common application of electric heat tracing bands in air conditioning systems. When the air conditioner is operating in heating mode, the surface temperature of the outdoor heat exchanger is much lower than the ambient temperature, causing water vapor in the air to condense into frost. The system needs to enter defrost mode periodically to melt the frost layer and drain the water. However, in severe cold temperatures below zero, this melted water is extremely prone to freeze during drainage, blocking the drainage holes and even forming icicles along the edges of the chassis, leading to water accumulation inside the unit. In severe cases, it may freeze and damage the heat exchanger fins or fan blades. Electric heat tracing bands are laid around the outdoor unit chassis and drainage outlets. The heat generated after being powered on continuously maintains the temperature in this area above freezing, ensuring smooth drainage of melted frost water and eliminating ice blockage and icicle formation at their source. This seemingly simple anti-freezing measure is actually crucial for ensuring the normal operation of air conditioning outdoor units in severe cold temperatures.

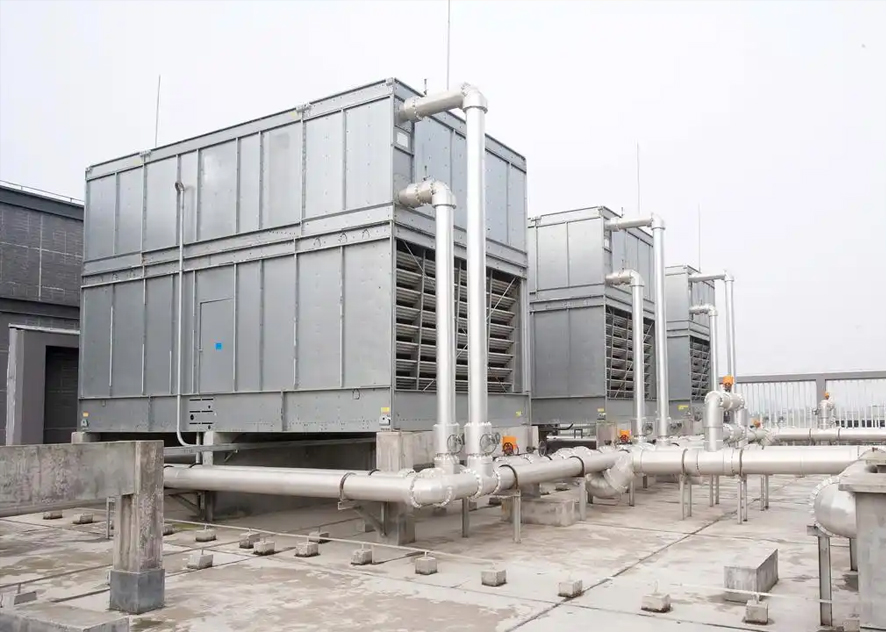

In the field of central air conditioning, the application scope of electric heat tracing bands is more extensive. During the winter shutdown period of cooling towers, the accumulated water in their water collection trays, makeup pipes, and valves is prone to freezing, and the huge pressure generated by volume expansion can be sufficient to rupture the equipment. Electric heat tracing bands are attached to the surfaces of these key components, and with real-time monitoring by temperature sensors, they automatically start heat tracing when the temperature drops to a set threshold, maintaining the flow state of the water and completely eliminating the risk of freeze cracking. Outdoor air conditioning water pipelines laid overhead also face the test of low temperatures, especially the supply and return water pipe sections near the fresh air handling units, where wind speeds are high and heat dissipation is rapid. Relying solely on insulation cotton is no longer sufficient to withstand the severe cold, and the active heating of electric heat tracing bands has become the last line of defense to ensure the safety of water pipes. For irregular components such as expansion tanks and pump casings in air conditioning systems, electric heat tracing bands, with their soft and bendable characteristics, can be laid "closely" to ensure that every key point of heat loss receives sufficient heat compensation.

In the terminal equipment of building air conditioning, electric heat tracing bands also play a role. If the condensate water tray of a fan coil unit is not drained smoothly in winter, the accumulated water may freeze and expand, damaging the coil. Locally installed heat tracing bands can maintain the temperature at the drain outlet to ensure smooth drainage of condensate water. For large air conditioning systems with heat recovery devices, frost may form on the surface of the heat exchanger that exchanges exhaust air with fresh air. Intermittent heating through heat tracing bands can effectively defrost and maintain heat recovery efficiency. Although these applications are not eye-catching, they are important details that ensure the efficient operation of central air conditioning systems in severe cold weather.

The application of electric heat tracing bands in air conditioning also extends to the protection of the equipment itself. For split air conditioners installed in cold regions, heat tracing bands are laid outside the insulation layer of the copper pipes connecting the indoor and outdoor units to prevent ice bridges from forming in the refrigerant pipelines where they pass through walls, ensuring smooth refrigerant circulation. For air conditioning systems using heat pump heat recovery technology, the outdoor water heat exchanger may freeze due to excessively low water temperature in winter. The active heating of the heat tracing band can maintain the water temperature within a safe range, ensuring the normal operation of the heat pump unit.

From residential split units to large central air conditioning systems, from outdoor unit drainage to cooling tower antifreeze, from condensate water trays to refrigerant pipelines, electric heat tracing bands have found widespread application in air conditioning systems due to their precise, proactive, and intelligent temperature protection. They make air conditioning systems resilient against severe cold, ensuring every warm breeze in winter is stable and reliable. When a cold wave strikes, it is these heating cables, either tightly attached to the pipe wall or hidden inside the unit, that silently provide warmth, ensuring the normal operation of the air conditioning system and safeguarding the warmth and comfort inside the building.
