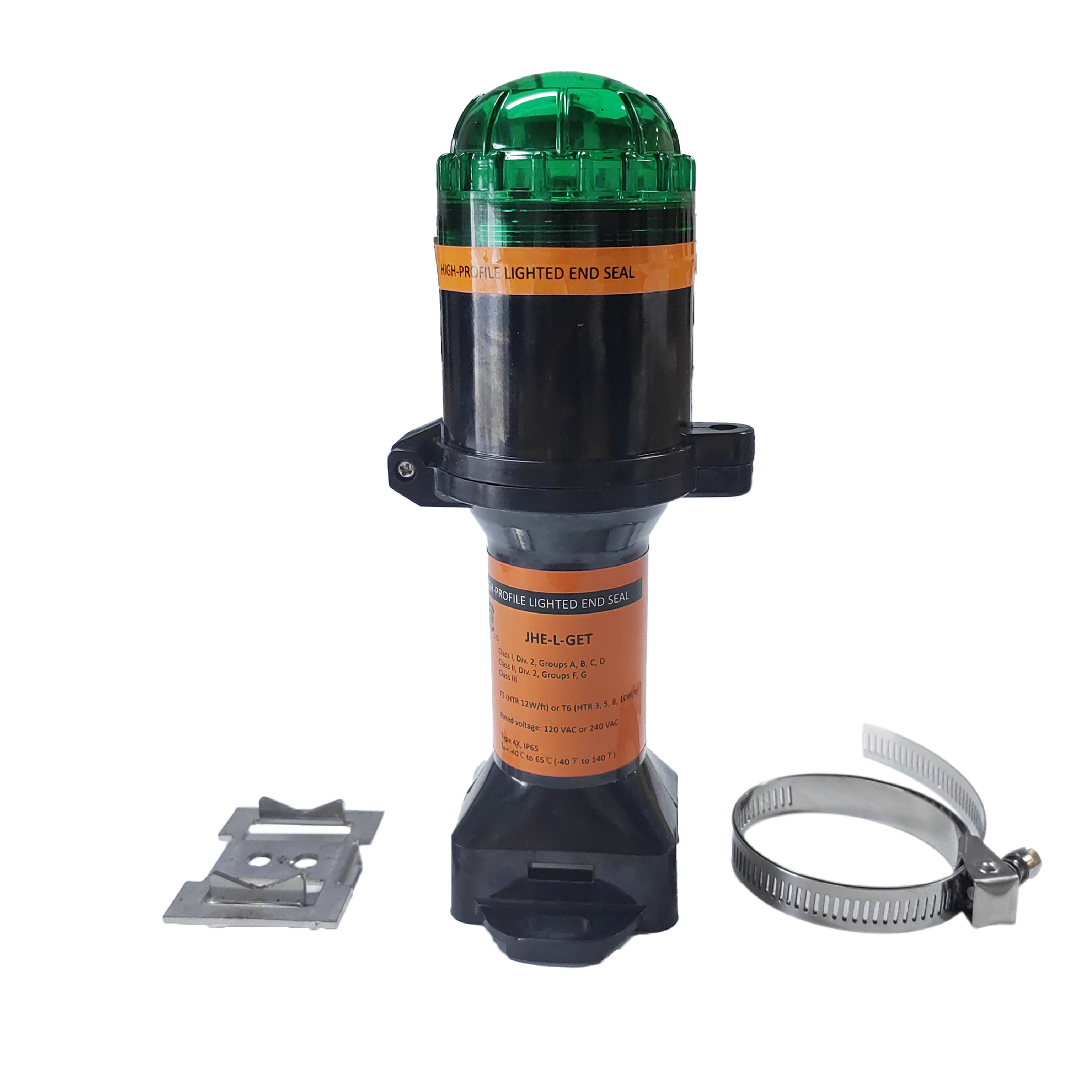

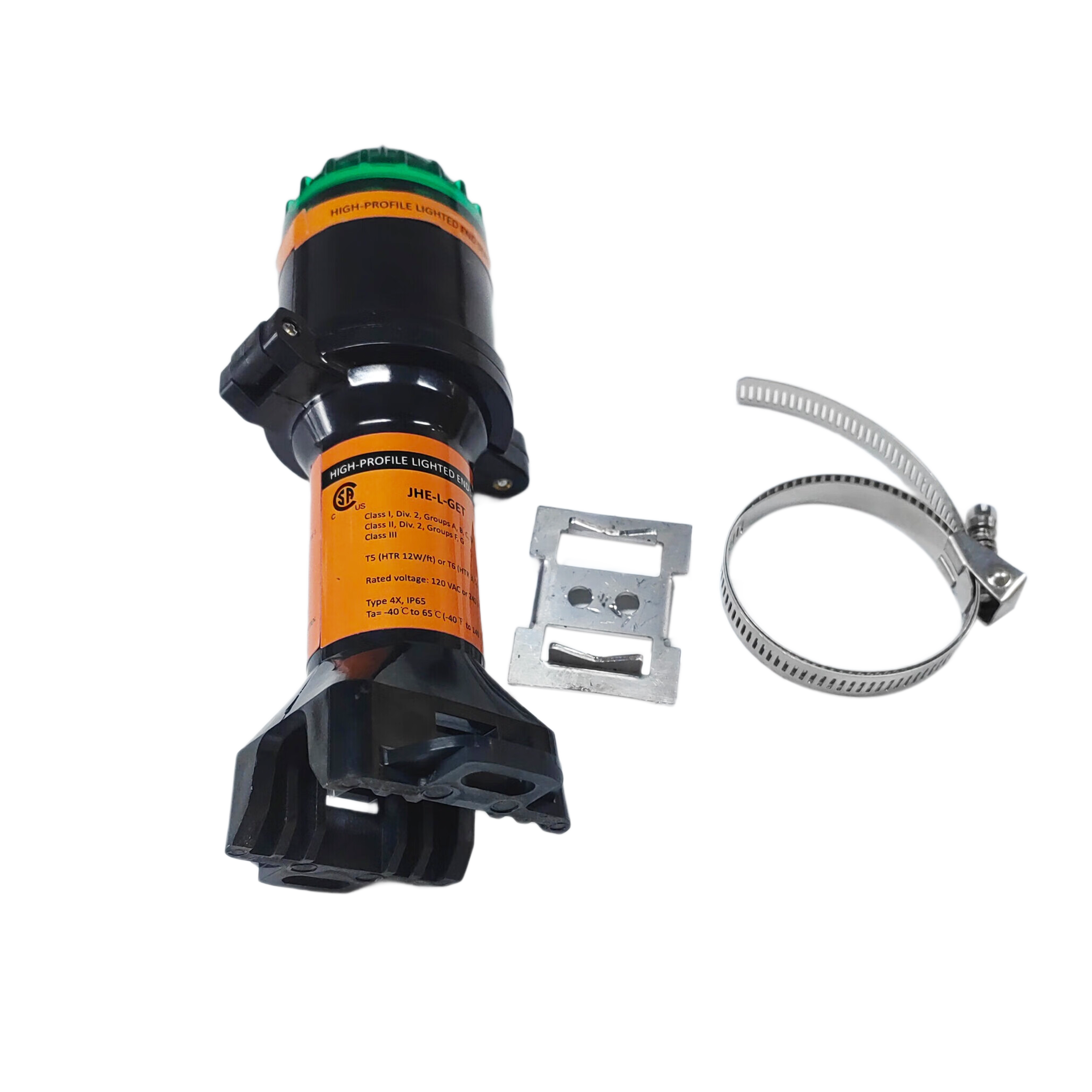

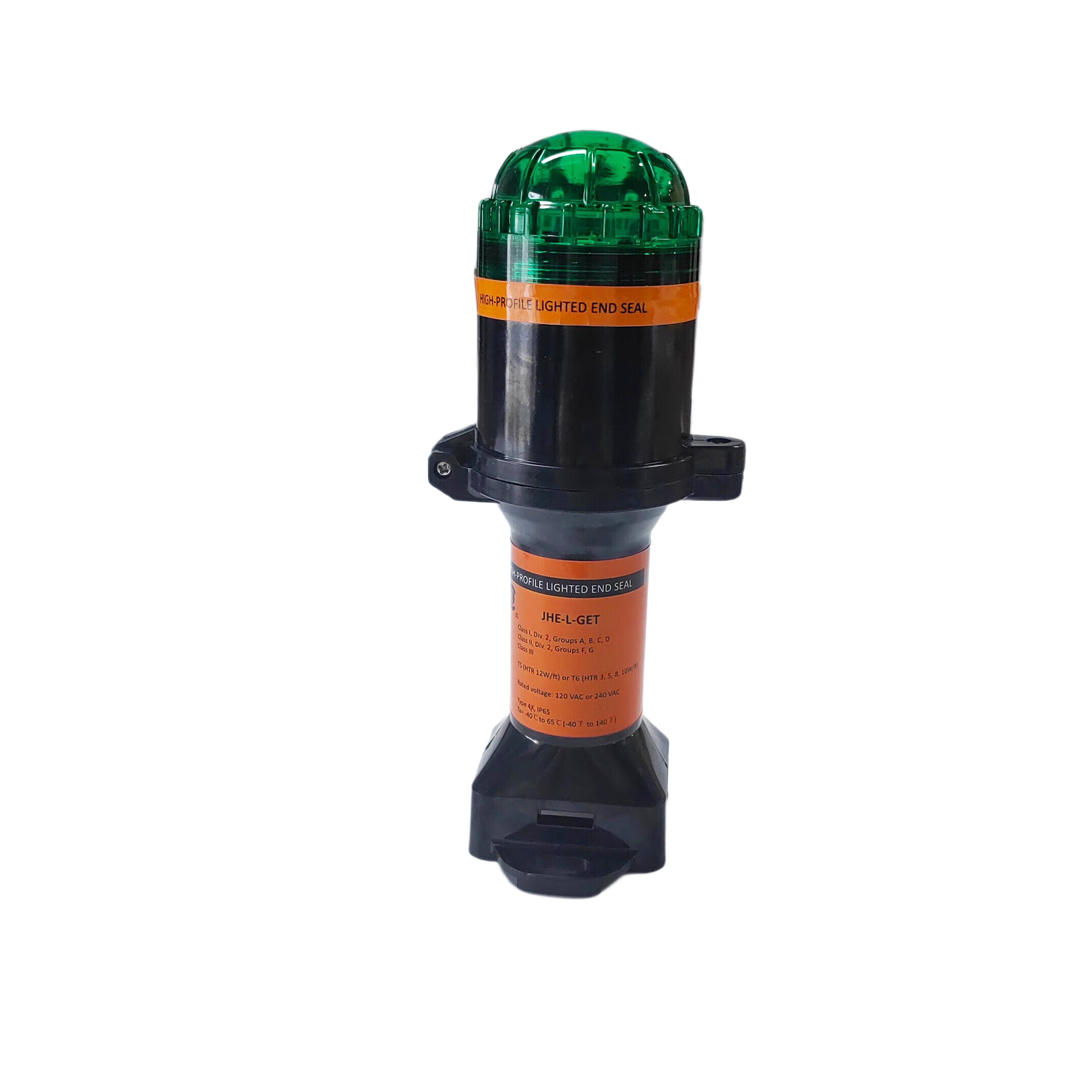

End termination kit with LED signal lamp

<p>HYB-GK steel clip is composed of stainless steel band and adjusting screw or lock clip, which is used to fix accessories such as explosion-proof power junction box on the pipeline. The steel strip can be cut according to 1.1 times the actual fixed length of the pipe diameter.</p>

<p>HZ703 performance and use: aging resistance, acid and alkali resistance, high and low temperature resistance (-60 ℃ ~ 250 ℃). No corrosion, good insulation, waterproof, shockproof performance, especially for the insulation potting of electric heating appliances.</p>

<p>HY-DBKX control box is a standard or non-standard distribution box for electric heating cable heating.</p>

<p>HYB-LB45 aluminum foil tape is coated with a layer of special adhesive on the aluminum foil tape. In the electric heating system, when the electric heating cable is installed, it is used to fix the electric heating cable along the direction of the electric heating cable and fully contact the heating object. Tracing heat and eliminating static electricity. The temperature sensing package of the thermostat is fixed for easy installation. Its main function is to fix the heating cable, increase the heat dissipation surface of the heating cable, and improve heat conduction. The bandwidth is 50mm, and each roll is 45m. The amount of aluminum foil tape used is 1.2 times of the designed electric heat tracing quantity.</p>

<p>HYB-YM30 heat-resistant pressure-sensitive adhesive tape, also known as fixed tape, is coated with a layer of special adhesive and aluminum film on the basis of glass fiber tape. The bandwidth is 20mm, and each roll is 30m. In the electric heating system, When the electric heating cable is installed, it is used to fix the electric heating cable along the radial direction of the pipeline. The equipped length depends on the outer diameter and length of the heating pipeline. The distance depends on the diameter of the pipeline, generally 0.5 ~ 0.8m. The amount of pressure-sensitive tape is generally taken as the circumference of the pipeline &times; the length of the pipeline &times; 8 (combined coefficient)</p>

<p>HYB-GK steel clip is composed of stainless steel band and adjusting screw or lock clip, which is used to fix accessories such as explosion-proof power junction box on the pipeline. The steel strip can be cut according to 1.1 times the actual fixed length of the pipe diameter.</p>

<p>HZ703 performance and use: aging resistance, acid and alkali resistance, high and low temperature resistance (-60 ℃ ~ 250 ℃). No corrosion, good insulation, waterproof, shockproof performance, especially for the insulation potting of electric heating appliances.</p>

<p>HY-DBKX control box is a standard or non-standard distribution box for electric heating cable heating.</p>

<p>HYB-LB45 aluminum foil tape is coated with a layer of special adhesive on the aluminum foil tape. In the electric heating system, when the electric heating cable is installed, it is used to fix the electric heating cable along the direction of the electric heating cable and fully contact the heating object. Tracing heat and eliminating static electricity. The temperature sensing package of the thermostat is fixed for easy installation. Its main function is to fix the heating cable, increase the heat dissipation surface of the heating cable, and improve heat conduction. The bandwidth is 50mm, and each roll is 45m. The amount of aluminum foil tape used is 1.2 times of the designed electric heat tracing quantity.</p>

<p>HYB-YM30 heat-resistant pressure-sensitive adhesive tape, also known as fixed tape, is coated with a layer of special adhesive and aluminum film on the basis of glass fiber tape. The bandwidth is 20mm, and each roll is 30m. In the electric heating system, When the electric heating cable is installed, it is used to fix the electric heating cable along the radial direction of the pipeline. The equipped length depends on the outer diameter and length of the heating pipeline. The distance depends on the diameter of the pipeline, generally 0.5 ~ 0.8m. The amount of pressure-sensitive tape is generally taken as the circumference of the pipeline &times; the length of the pipeline &times; 8 (combined coefficient)</p>

<p>Introduction/Description/Overview:<br />It is made of high-temperature resistant white PTFE fiberglass cloth and treated at high temperature. The product has the characteristics of good temperature resistance, strong adhesion, strong tear resistance, and melting resistance. It is used to tie the heating cable to the pipe. It is not used for stainless steel pipes or installations below 40&deg;F (5℃).<br />Structural dimensions/outline dimensions:<br />Thickness 0.2mm, width 0.5 inches, length 16.5m<br />Applicable conditions/application areas/purposes and restrictions/usage conditions:<br />For stainless steel pipes, or installations below 40&deg;F (5℃), maximum temperature resistance: 260℃.<br />Advantages/superiority:<br />The self-regulating heating cable automatically increases power as the ambient temperature decreases, and starts quickly. When the temperature rises, the power is reduced to avoid overheating, reduce operating costs, and the temperature is uniform. The self-regulating heating cable can be cut arbitrarily according to actual conditions, can be cross-overlapped, simple to install, and easy to maintain.</p>
