The HYB-JS warning sign is designed to be attached or hung on the outer surface of completed construction of the heat trace pipeline.

Explosion-proof temperature controller for electric heating cable

The explosion-proof temperature controller is an important accessory of the electric heating system, used to control the temperature of the heating medium, and is used in conjunction with the FDH type general explosion-proof junction box

Technical indicators:

1. Model: BJW86

2. Rated current: 25A

3. Temperature adjustment range: 0-120℃, 0-150℃, 0-200℃

4. Temperature control accuracy: ±5℃

5. On-off differential: ≤6℃

6. Inner diameter of control cable sealing ring: ⊿14mm

7. Protection level: IP65

Product introduction:

The explosion-proof temperature controller is an important accessory of the electric heating system, used to control the temperature of the heating medium, and is used in conjunction with the CH type general explosion-proof junction box. It is designed and manufactured according to the requirements of explosion-proof electrical appliances, and the explosion-proof mark is: “Exd e mb llCT4 Gb”;  its shell is DMC plastic with the characteristics of light weight, high mechanical strength and strong corrosion resistance.

The explosion-proof temperature controller is used for the connection of the power line and the electric heating belt in the explosion-proof area. Usually fixed on the pipe. After being matched with electric heating belt and power junction box, it is suitable for use in the explosive gas mixture T4 group field in the first and second areas of the factory. The explosion-proof temperature controller can output in one direction, and its shell is made of DMC plastic.

The HYB-JS warning sign is pasted or hung and fixed on the outer surface of the heat tracing pipeline after construction, as a signal and a power-on warning. Generally, warnings are pasted or hung at easy-to-see locations every 20m or so.

Explosion-proof intermediate junction boxes include explosion-proof straight junction boxes (commonly known as two-way) and explosion-proof T-type junction boxes (commonly known as three-way). It is mainly used in the connection of electric heating cables in explosion-proof areas to increase the length of electric heating cables, or to use different power heating cables and trident tubes on the same pipeline and other complex occasions. Its shell is made of DMC plastic.

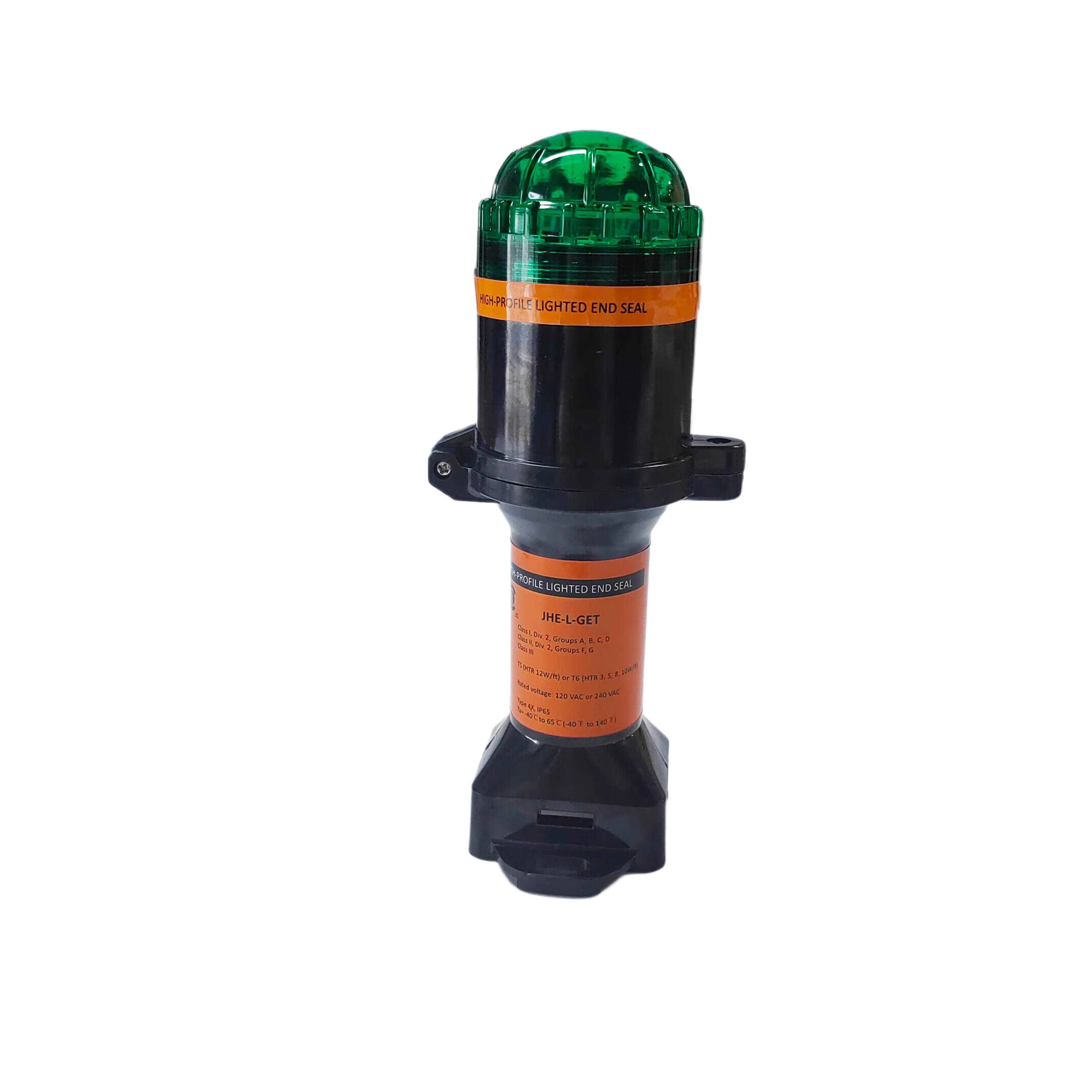

JHE-L-GET

End termination kit with LED signal lamp for industrial trace heating applications.

Features

The JHE-L-GET is an end termination kit with LED signal lamp. It is designed and manufactured to meet all relevant standards for industrial trace heating cable system in hazardous locations such as petrochemical plant, gas plant, ship and off-shore facilities. It consists of an Ex certified plastic termination enclosure and all necessary parts together with Ex d signal lamp assembly. It has a specially 'flip cover locks' technology for easy and time-saving connection with  self-regulating heating cables on various sites.

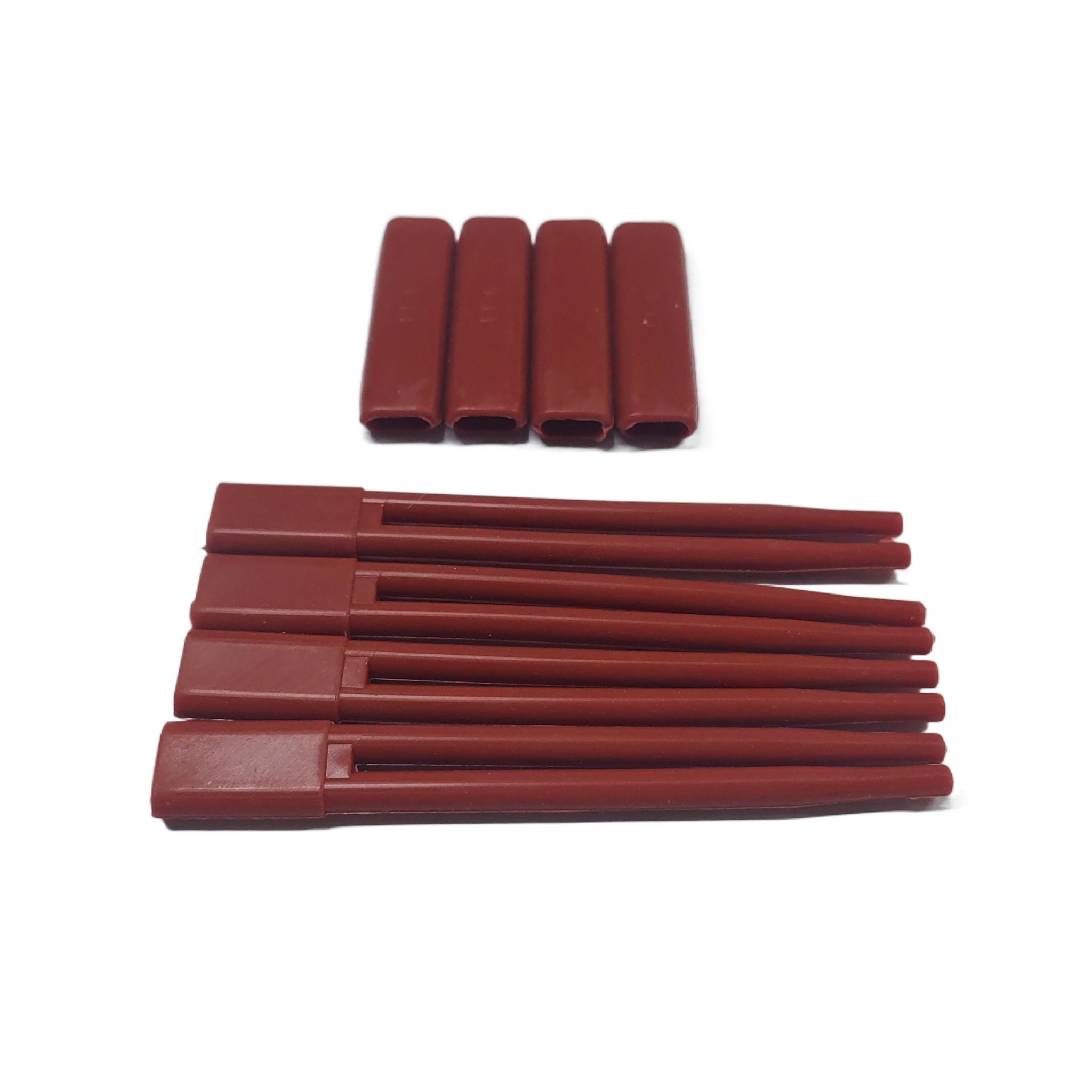

Product name: Heating cable tail waterproof silicone seal
Product color: orange-red
Product use: Waterproof seal short-term temperature resistance 250°C
Long-term temperature resistance: 200℃
Product material: Silicone
Reusable: Yes
Applicable to waterproof sealing at the branch of cable core and tail end sealing protection

The explosion-proof terminal junction box is used at the end of the heating cable to reliably isolate the fracture of the heating cable from the outside world. The shell material is made of PMC plastic

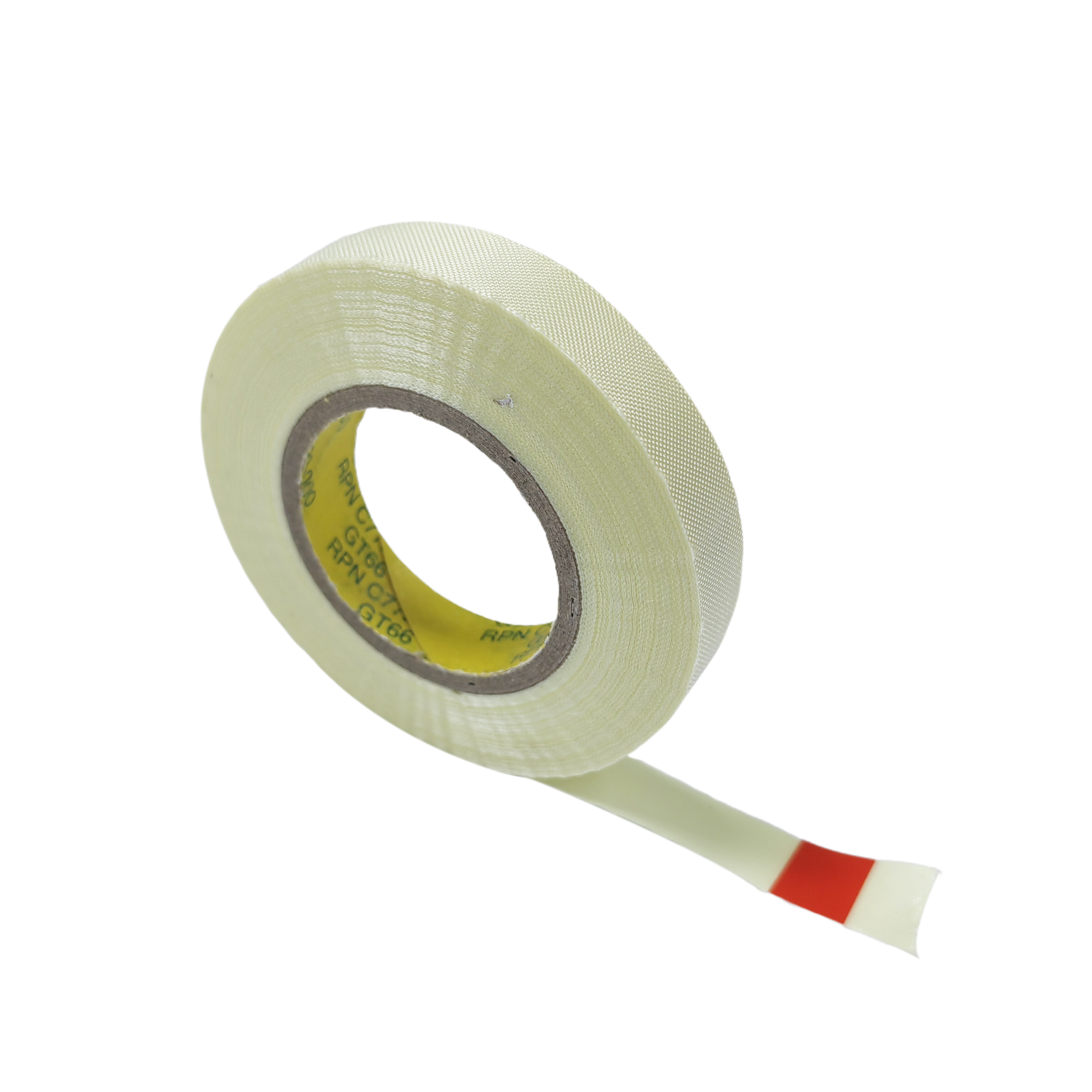

Introduction/Description/Overview:

It is made of high-temperature resistant white PTFE fiberglass cloth and treated at high temperature. The product has the characteristics of good temperature resistance, strong adhesion, strong tear resistance, and melting resistance. It is used to tie the heating cable to the pipe. It is not used for stainless steel pipes or installations below 40°F (5℃).

Structural dimensions/outline dimensions:

Thickness 0.2mm, width 0.5 inches, length 20m

Applicable conditions/application areas/purposes and restrictions/usage conditions:

For stainless steel pipes, or installations below 40°F (5℃), maximum temperature resistance: 260℃.

Advantages/superiority:

The self-regulating heating cable automatically increases power as the ambient temperature decreases, and starts quickly. When the temperature rises, the power is reduced to avoid overheating, reduce operating costs, and the temperature is uniform. The self-regulating heating cable can be cut arbitrarily according to actual conditions, can be cross-overlapped, simple to install, and easy to maintain.

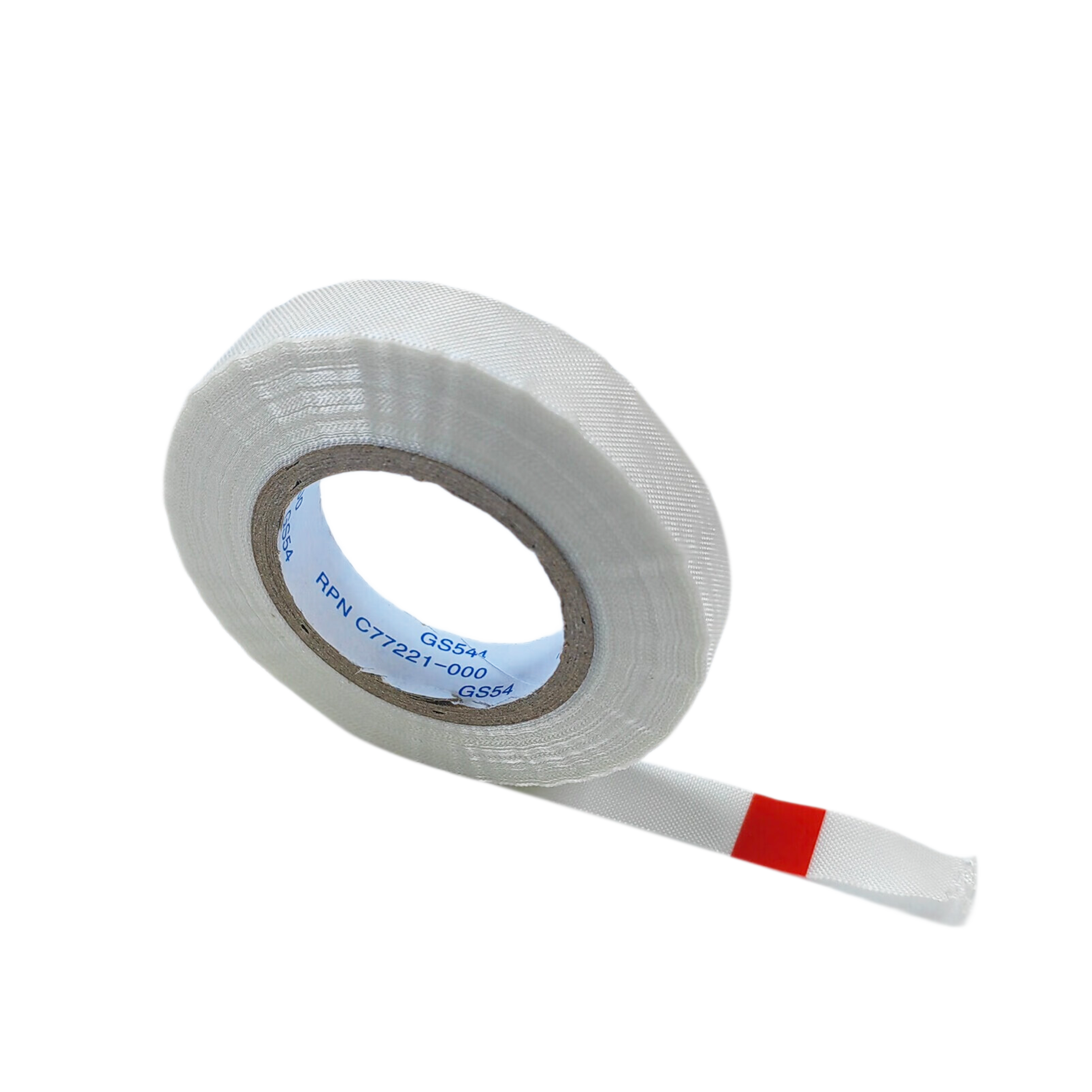

Introduction/Description/Overview:
It is made of high-temperature resistant white PTFE fiberglass cloth and treated at high temperature. The product has the characteristics of good temperature resistance, strong adhesion, strong tear resistance, and melting resistance. It is used to tie the heating cable to the pipe. It is not used for stainless steel pipes or installations below 40°F (5℃).
Structural dimensions/outline dimensions:
Thickness 0.2mm, width 0.5 inches, length 16.5m
Applicable conditions/application areas/purposes and restrictions/usage conditions:
For stainless steel pipes, or installations below 40°F (5℃), maximum temperature resistance: 260℃.
Advantages/superiority:
The self-regulating heating cable automatically increases power as the ambient temperature decreases, and starts quickly. When the temperature rises, the power is reduced to avoid overheating, reduce operating costs, and the temperature is uniform. The self-regulating heating cable can be cut arbitrarily according to actual conditions, can be cross-overlapped, simple to install, and easy to maintain.

HYB-YM30 heat-resistant pressure-sensitive adhesive tape, also known as fixed tape, is coated with a layer of special adhesive and aluminum film on the basis of glass fiber tape. The bandwidth is 20mm, and each roll is 30m. In the electric heating system, When the electric heating cable is installed, it is used to fix the electric heating cable along the radial direction of the pipeline. The equipped length depends on the outer diameter and length of the heating pipeline. The distance depends on the diameter of the pipeline, generally 0.5 ~ 0.8m. The amount of pressure-sensitive tape is generally taken as the circumference of the pipeline × the length of the pipeline × 8 (combined coefficient)

HYB-LB45 aluminum foil tape is coated with a layer of special adhesive on the aluminum foil tape. In the electric heating system, when the electric heating cable is installed, it is used to fix the electric heating cable along the direction of the electric heating cable and fully contact the heating object. Tracing heat and eliminating static electricity. The temperature sensing package of the thermostat is fixed for easy installation. Its main function is to fix the heating cable, increase the heat dissipation surface of the heating cable, and improve heat conduction. The bandwidth is 50mm, and each roll is 45m. The amount of aluminum foil tape used is 1.2 times of the designed electric heat tracing quantity.
